04-20 Ford F-150 Boxed Upper Control Arms

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we use durable urethane bushings with grease fittings for easy servicing. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and grade 8 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

Specifications
Wheel Travel: Additional 1” of travel compared to stock
Amount of Lift: Allows for 0-2” of lift
Track Width: Stock
Maximum Backspacing: 5”
Minimum Rim Size: 17”
Coil over Shock Size:Factory or OEM replacement coilovers
Wheel Travel / Lift
The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 1” of travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, ADS and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.

Tire Info

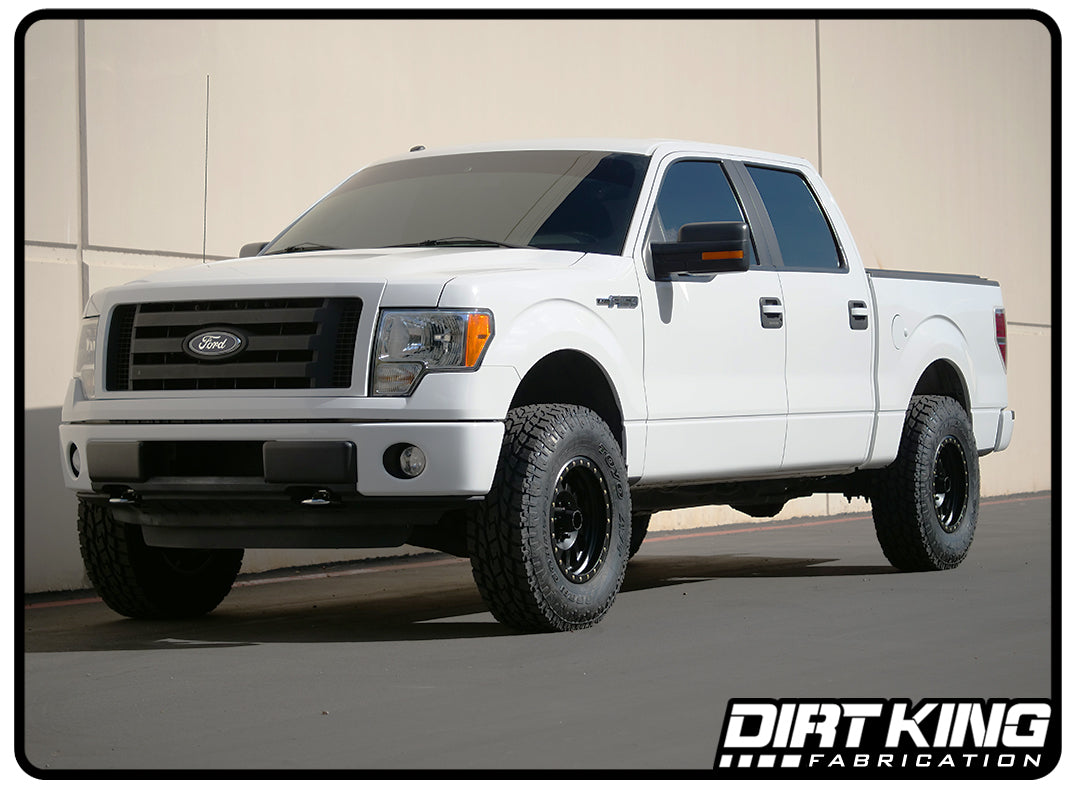

The upper control arms allow for 35” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made. We recommend no larger than 33” tires on the 2004-2008 models and no larger than 35” tires on the 2009-2014 models.

What's Included
Boxed plate upper control arms
Urethane bushings
Grease fittings
1” FK uniballs
17-4 stainless steel misalignment spacers
Grade 8 hardware
Zinc plated inner bushing sleeves
Durable black powder coat
Dirt King sticker pack
Installation instructions
Features
CAD designed
Boxed plate construction
4130 chromoly uniball cups
Brushed stainless steel logo plates
Preassembled for fast installation
Grease fittings for easy servicing
Zinc plated components for corrosion resistance
Professionally MIG welded
Proudly made in the USA
