07-09 Toyota FJ Cruiser Boxed Upper Control Arms

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we use durable urethane bushings with grease fittings for easy servicing. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and military grade F911 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

Specifications
Wheel Travel: Additional 1” of travel compared to stock
Amount of Lift: Allows for 0-3” of lift
Track Width: Stock
Maximum Backspacing: 4.75”
Minimum Rim Size: 16”
Coil over Shock Size:Factory or OEM replacement coilovers
Wheel Travel / Lift

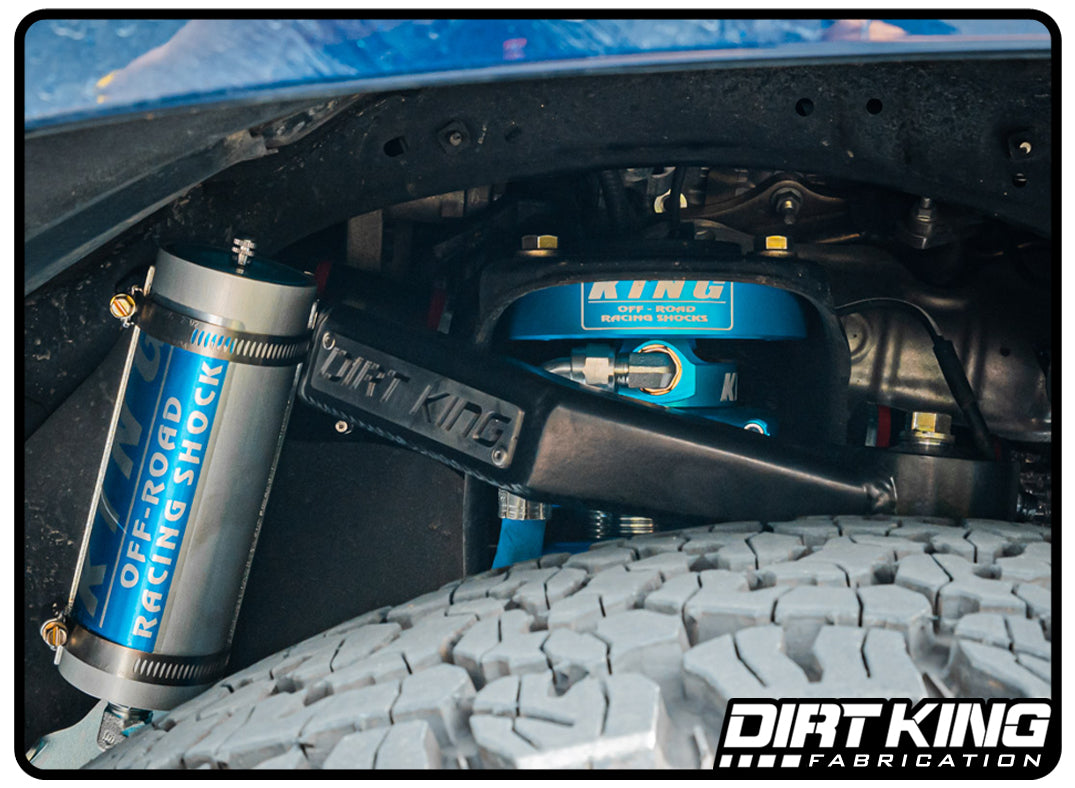

The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 1” of down travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, ADS and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.

*Some King OEM replacement coil overs have short reservoir hoses that come in contact with aftermarket upper control arms. This can be solved by installing longer reservoir hoses or adjusting the reservoir to allow for more slack in the hose.

Tire Info
The upper control arms will allow for 33” tires but the front section of the cab mount may need to be cut to avoid tire rubbing while turning. In addition the front bumper may require trimming for proper tire clearance.

What's Included

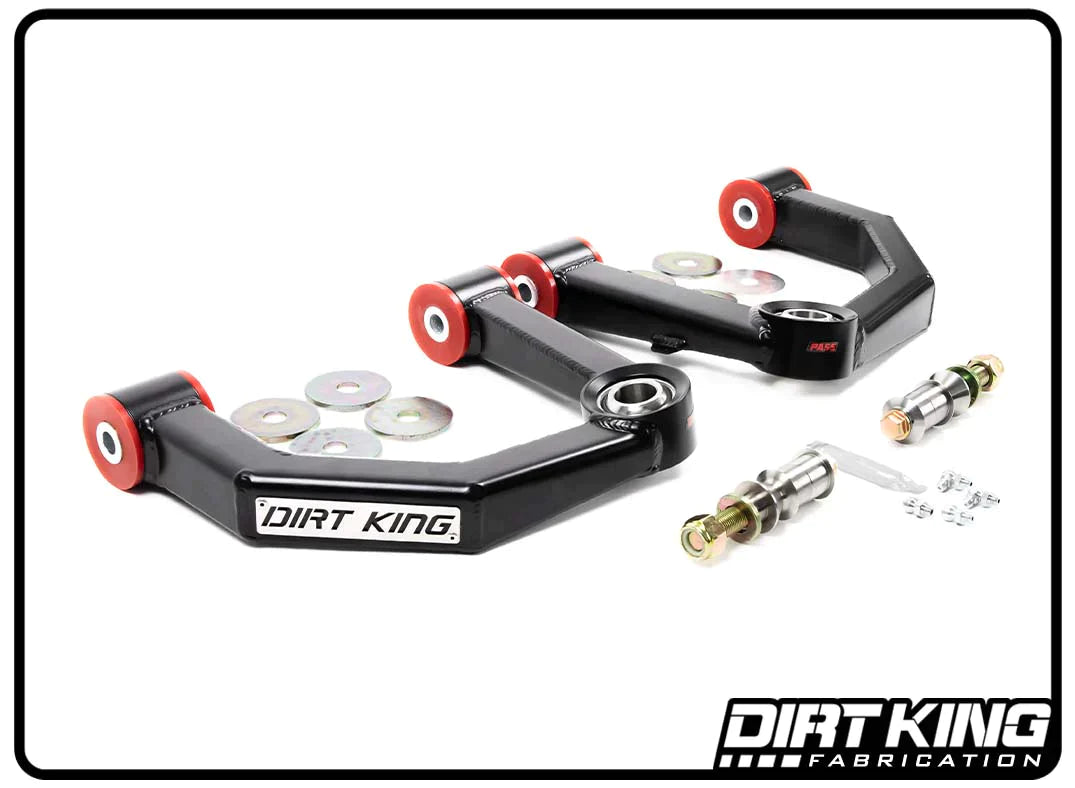

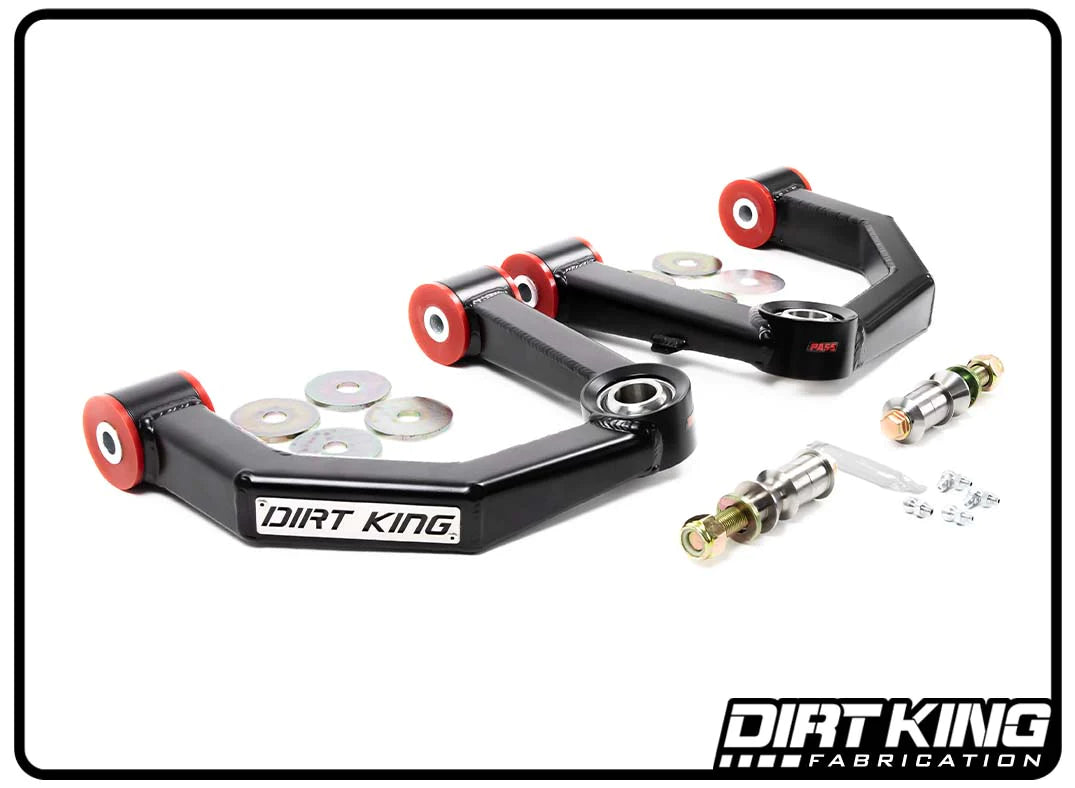

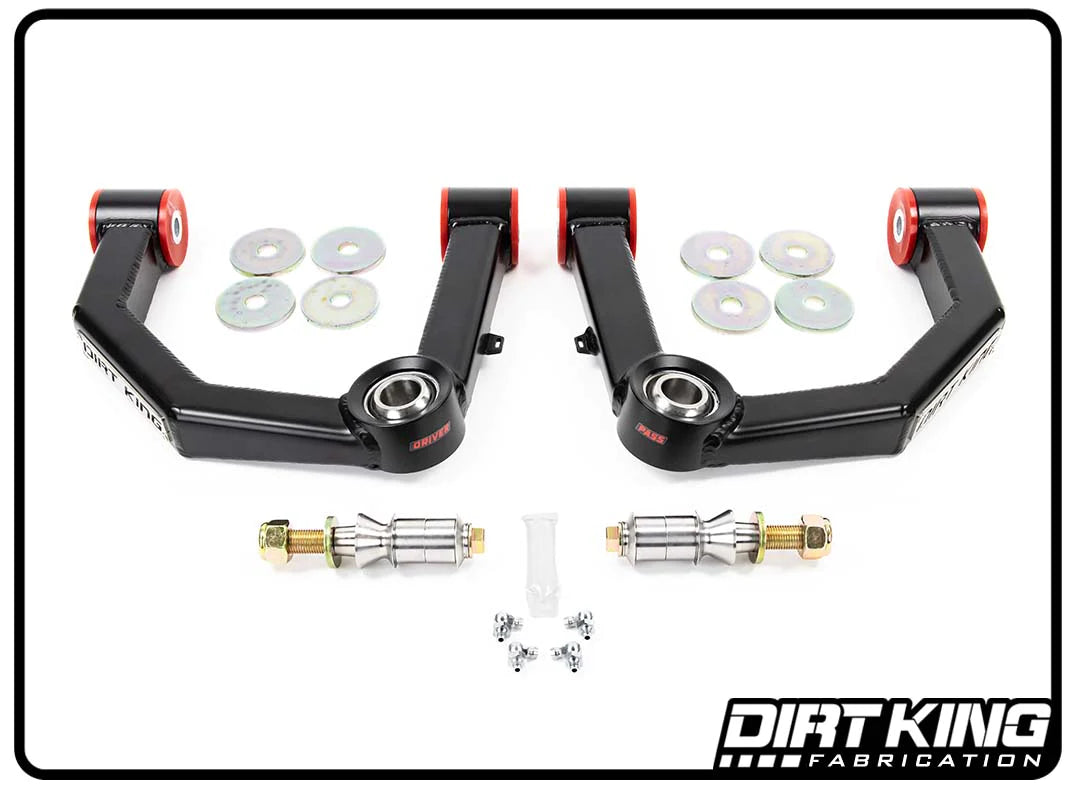

Boxed plate upper control arms
Urethane bushings
Grease fittings
1” FK uniballs
17-4 stainless steel misalignment spacers
Military grade F911 hardware
Zinc plated bushing washers
Zinc plated inner bushing sleeves
Durable black powder coat
Dirt King sticker pack
Installation instructions
Features
CAD designed
Boxed plate construction
4130 chromoly uniball cups
Brushed stainless steel logo plates
Preassembled for fast installation
Grease fitting ports for easy servicing
Zinc plated components for corrosion resistance
Professionally MIG welded
Proudly made in the USA
