FOX 2.5 Performance Elite Coil-Over Kit - No Lift | Chevy Trail Boss Or GMC AT4 1500 (19-23) 4WD
FOX 2.5 Performance Elite Coil-Over Kit - No Lift | Chevy Trail Boss Or GMC AT4 1500 (19-23) 4WD
BDS
Regular price
$4,420.85
Regular price
Sale price
$4,420.85
Unit price
per
SKU:BDS790FDSC
Couldn't load pickup availability
- DON'T SEE WHAT YOU'RE LOOKING FOR? CONTACT US
Maximize the performance of your Chevy Trail Boss or GMC AT4 1500 truck by installing FOX Performance Elite 2.5 coil-over kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 33" tires.

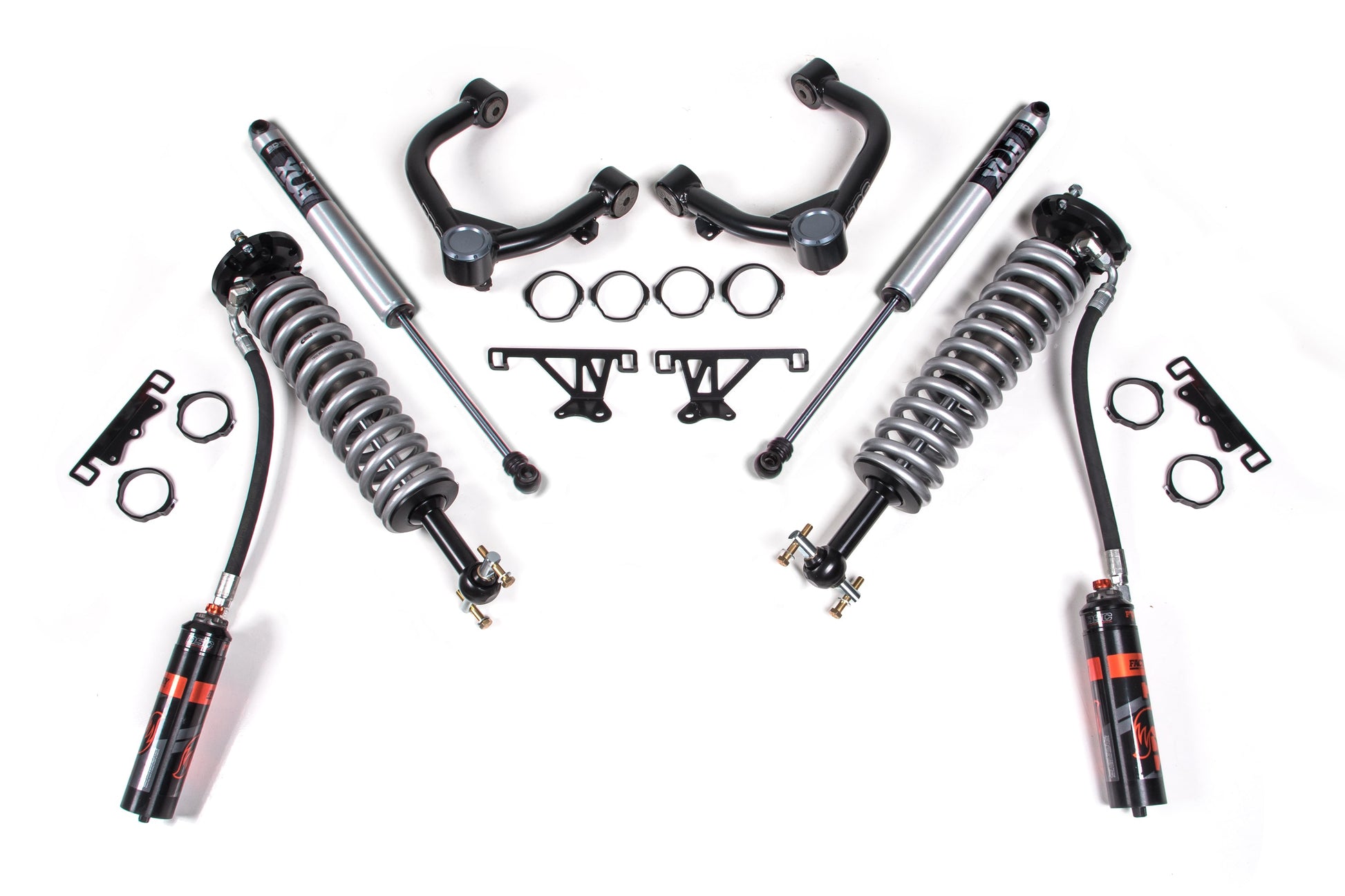

Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Features & Benefits
FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
Performance UCAs increase strength and allow for more suspension travel
FOX 2.0 performance series IFP rear shocks included
Factory Protection Plus drivetrain warranty included
Easy, 100% Bolt on installation
Recommended Tires & Wheels
295 / 70 with 17 x 9 and 5.5 in. Backspace
295 / 65 with 18 x 9 and 5.5 in. Backspace
295 / 60 with 20 x 9 and 5.5 in. Backspace
Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a complementary set of FOX 2.0 Performance shocks for the smoothest ride.
FOX Performance Elite
FOX 2.5 Performance Elite shocks offer next level performance for on-road comfort and off-road comfort capability. Tuned and ready to install right out of the box, these bolt-on 2.5-inch diameter shocks are built for abuse and packed with race-proven technology. They include a remote reservoir for additional fluid capacity to keep your shocks running cool so you can push the limits in the rough terrain. The DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs, offering 10 separate low-speed and 12 high-speed compression levels, with a black anodized aluminum reservoir to increase cooling efficiency.
HD Upper Control Arms (UCAs)
Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.
Features & Benefits
FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
DSC Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
Performance UCAs increase strength and allow for more suspension travel
FOX 2.0 performance series IFP rear shocks included
Factory Protection Plus drivetrain warranty included
Easy, 100% Bolt on installation
Recommended Tires & Wheels
295 / 70 with 17 x 9 and 5.5 in. Backspace
295 / 65 with 18 x 9 and 5.5 in. Backspace
295 / 60 with 20 x 9 and 5.5 in. Backspace
